e777乐彩线路检测-e77乐彩线路登陆-e乐彩线路登录The SGB420/30 scraper conveyor has the characteristics of strong transportation capacity, smooth transmission, simple structure, easy assembly and disassembly, easy maintenance, safety and reliability. It is mainly suitable for transporting coal in gently inclined thin and medium thick coal seams underground in coal mines, and the installation of coal blocking plates can be used for trench transportation.
[Model meaning of SGB-420/30 scraper conveyor]:
e777乐彩线路检测-e77乐彩线路登陆-e乐彩线路登录S - Conveyor; G - Scraper;
B - Edge double chain type; 420- Outer width of middle groove 420 (mm)
30- Motor power 30 (kw) SGB-420/30 scraper conveyor features
1. Solid structure. Can withstand external forces such as impact, collision, smashing, and pressure from coal, gangue, or other materials.
2. Can adapt to the needs of uneven and curved bottom plates in coal mining faces, and can withstand vertical or horizontal bending.
3. The body is short and easy to install.
4. Can also serve as a track for the operation of coal mining machines.
5. Can run in reverse for easy handling of bottom chain accidents.
6. Can serve as a pivot point for the front section of the liquid night bracket.
e777乐彩线路检测-e77乐彩线路登陆-e乐彩线路登录The scraper conveyor models produced by Shandong Zhonglian include:
SGD40/5.5V SGD280/7.5 SGD280/11 SGD320/17A
e777乐彩线路检测-e77乐彩线路登陆-e乐彩线路登录SGD320/18.5 SGD320/22 SGD420/22 SGD420/30
e777乐彩线路检测-e77乐彩线路登陆-e乐彩线路登录SGB320/18.5 SGB420/22 SGB420/30 SGB520/30
SGB420/40X SGB520/40 SGB620/40T SGB620/80T
e777乐彩线路检测-e77乐彩线路登陆-e乐彩线路登录SGB630/150C SGB630/180 SGD630/180 SGD630/220
SGB630/220 SGZ630/220 SGZ630/264 SGZ730/220
e777乐彩线路检测-e77乐彩线路登陆-e乐彩线路登录SGZ730/264 SGZ730/320 SGB764/264 SGZ764/264
SGZ764/320D
[Scraper transfer machine model]:
SZB630/75 SZB630/110 SZB730/40 SZB730/75 SZB730/110
e777乐彩线路检测-e77乐彩线路登陆-e乐彩线路登录Model of reducer for scraper conveyor: JS11 JS17 JS18.5 JS22 JS30 JS40
JS75 JS90 JS110 JS132 JS160
Model of reducer for belt conveyor:
e777乐彩线路检测-e77乐彩线路登陆-e乐彩线路登录JS17 20D JS30 JS40 JS75 JS90 JS125 JS160
High strength circular chain model for mining:
10 × 40mm 14 × 50mm 18 × 64mm 22 × 86mm 26 × 92mm 30 × 108mm

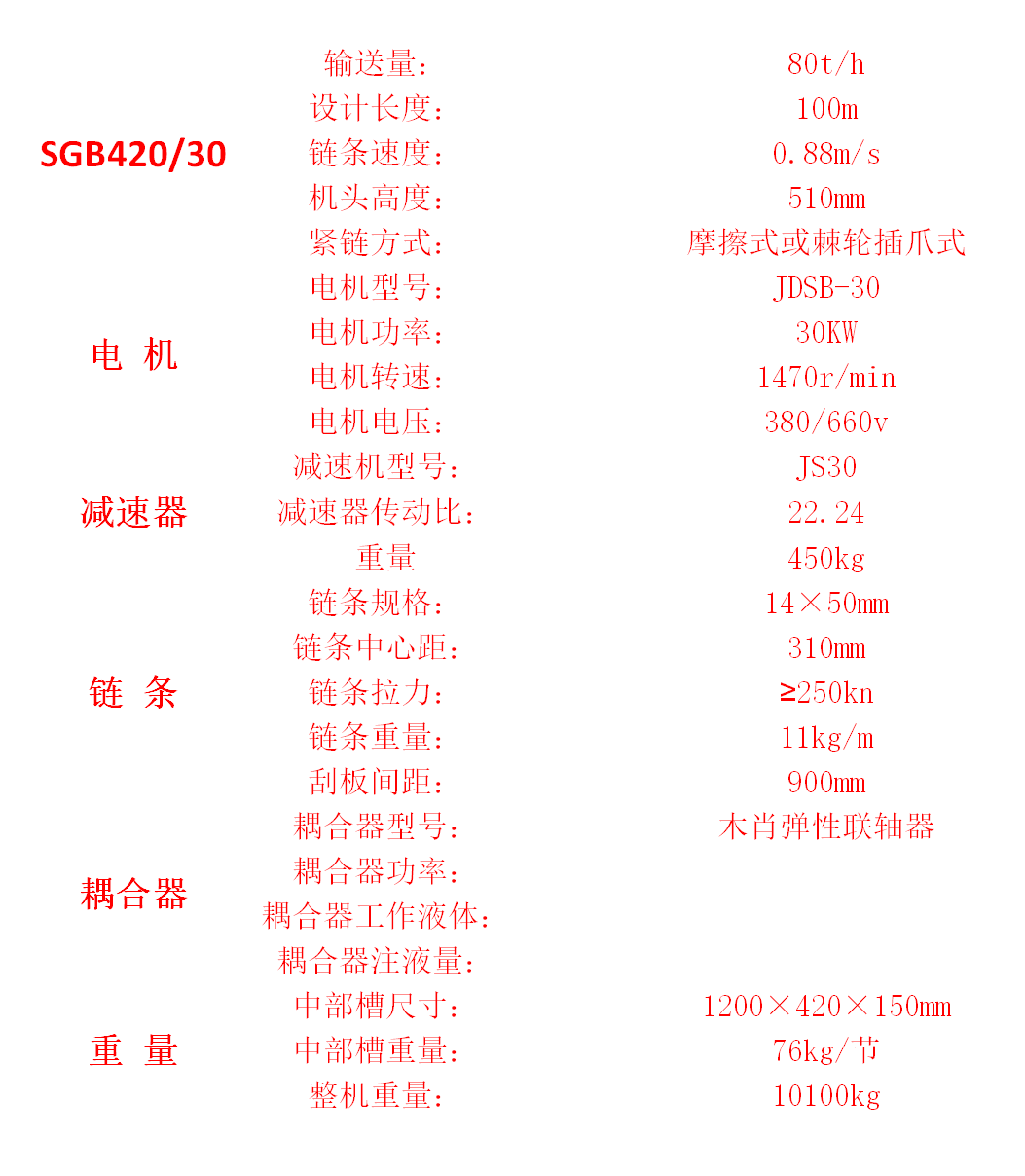

Main technical parameters of SGB420/30 scraper conveyor:
